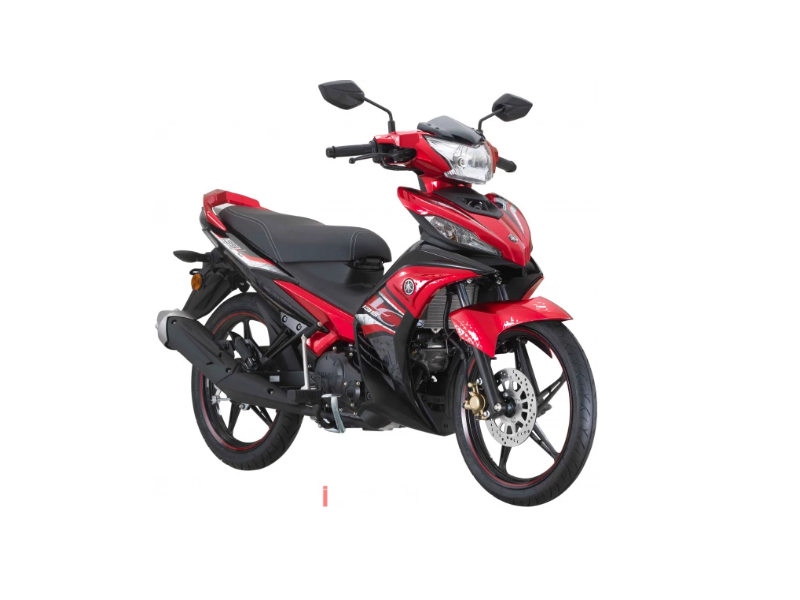

YAMAHA 135LC - Auto Clutch

YAMAHA 135LC - Auto Clutch

YH01
Yamaha Motor Malaysia | Yamaha Motor Selangor | Yamaha Motor Kuala Lumpur (KL)
RM6245.00

Product Description


YAMAHA 135LC

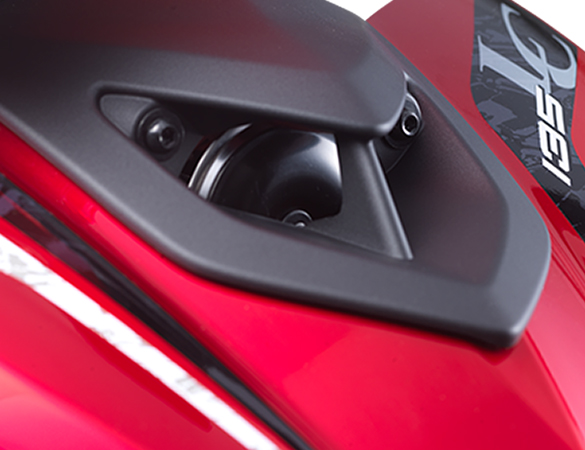

COVER HORN

Even steady, even aggresive! Elegant and stunning cover design produces a clearer sound!

YAMAHA 135LC

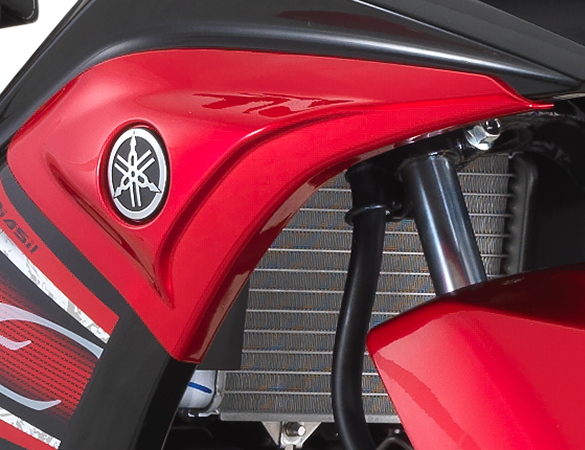

AIR SCOOP

A pair of air scoop (left and right) refines the flow of air, allowing the motorcycle to be more aerodynamic and stylish.

YAMAHA 135LC

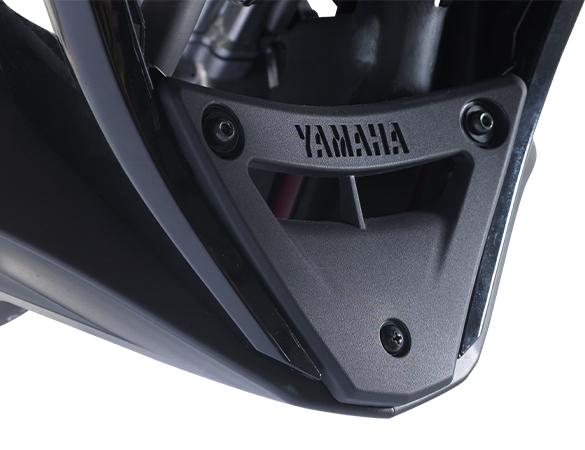

FRONT COVER UNDER

The front cover under are designed to protect the engine and providing an impressive appearance.





click me to view colors

YAMAHA 135LC

YAMAHA 135LC

YAMAHA 135LC

YAMAHA 135LC


Specification

ENGINE

CYLINDERS
    Single Cylinder

DISPLACEMENT
    134 cm3

BORE X STROKE
    54.0 X 58.7 mm

COMPRESSION RATIO
    10.9 : 1

MAXIMUM HORSEPOWER
    8.93kW (8,500rpm)

SECONDARY REDUCTION RATIO
    2600

MAX TORQUE
    11.79N.m (5,500rpm)

STARTING SYSTEM
    Electric and Kick

LUBRICATION SYSTEM
    Wet Sump

ENGINE OIL CAPACITY
    0.9 litres

FUEL TANK CAPACITY
    4.0 litres

GEAR RATIO
    1st: 2.833; 2nd: 1.875; 3rd: 1.353; 4th: 1.045

CARBURETOR
    BS25 x 1

IGNITION SYSTEM
    DC – CDI

HEADLIGHT
    12v, 35W/35W

TRANSMISSION TYPE
    Rotary Type 4-Speed

PRIMARY REDUCTION RATIO
    2.875

CLUTCH TYPE
    Automatic Centrifugal / Constant Mesh

CHASIS

FRAME TYPE
    Diamond

OVERALL LENGTH
    1,960 mm

OVERALL WIDTH
    695 mm

SEAT HEIGHT
    775 mm

MIN GROUND CLEARANCE
    130 mm

DRY WEIGHT
    105 kg

BRAKE FRONT AND GEAR
    Hydraulic Single Disc and Drum

FRONT SUSPENSION
    Telescopic

REAR SUSPENSION
    Monocross

FRONT TYRE
    70/90 – 17

REAR TYRE
    80/90 – 17
