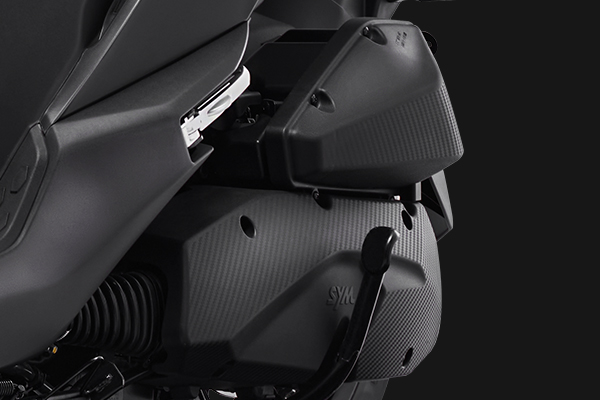

| Single Cylinder, 4-stroke, 4-valve, Liquid-cooled |
| |
| Powerful and efficient engine for smooth performance. |
|
|
|
|
 |

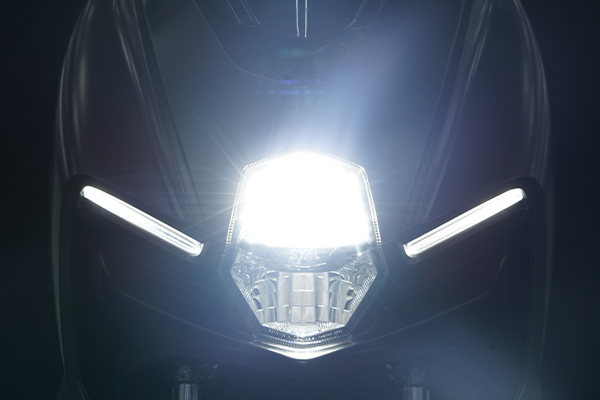

| Snake Pupil LED Headlight |
| |
| Fierce illumination for a bold presence. |
|
|
|
|
 |

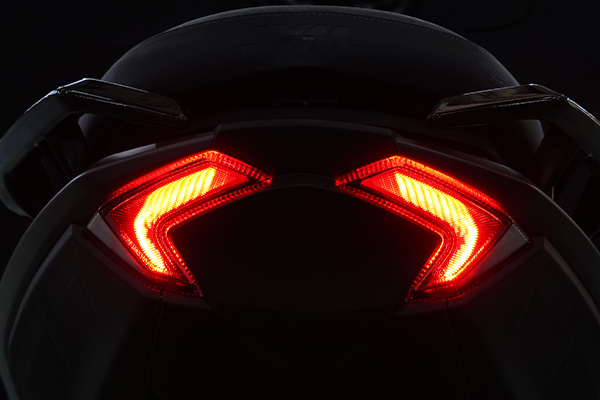

| Snake Fang LED Tail Light |
| |
| Striking design that commands attention. |
|
|
|
|
|
| |
 |

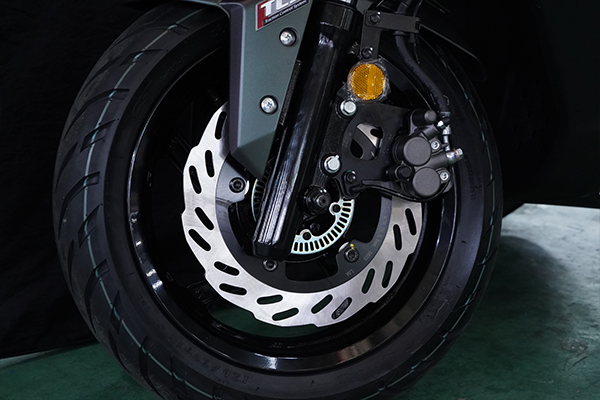

| Dual Channel ABS + TCS |
| |
| Enhanced safety and confident braking control. |
|
|
|
|
 |

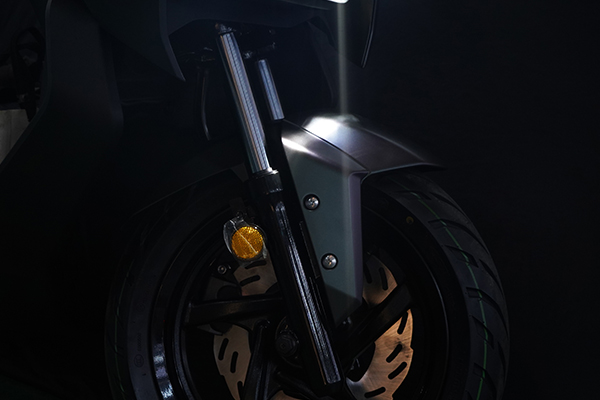

| Telescopic Front Forks |
| |
| Smoother handling, better comfort on every ride. |
|
|
|
|
 |

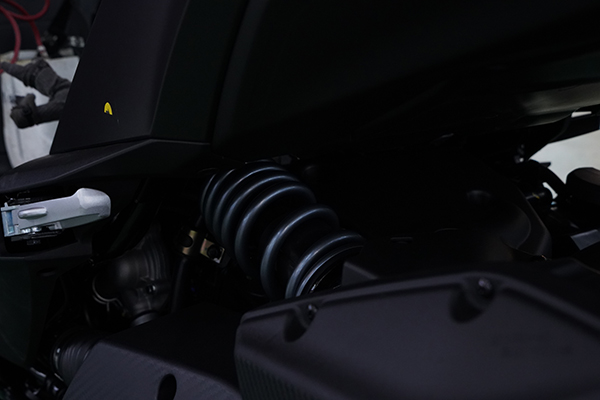

| Rear Monoshock |
| |
| Superior stability and cornering performance. |
|
|
|
|
|
| |
.jpg "SYM NAGA 150") |

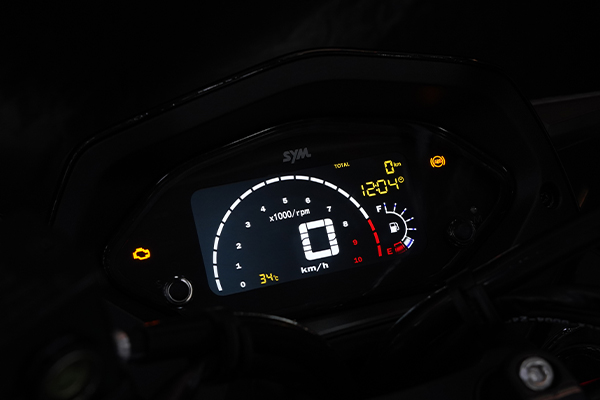

| Full-colour LED Digital Meter |
| |
| Modern, clear display with premium style. |
|
|
|
|
|
 |

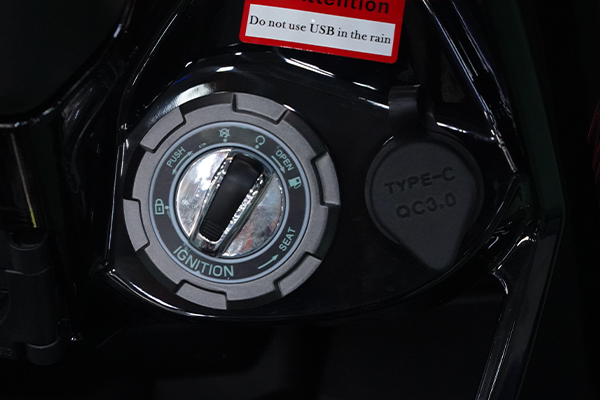

| Smart Key System + Dual USB Ports (Type-A & Type-C) |
| |
| Keyless convenience and fast charging on the go. |
|
|
|
|
.jpg "SYM NAGA 150") |

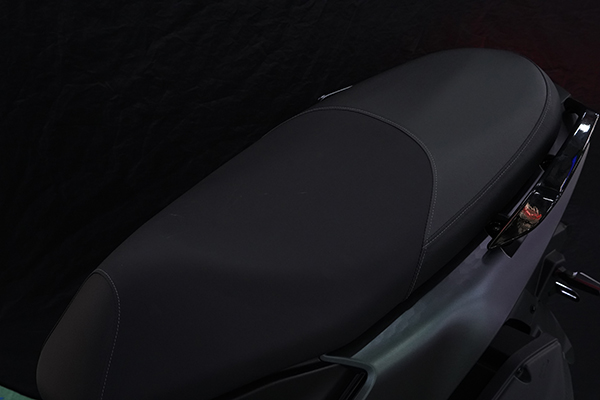

| High-density Seat Foam |
| |
| All-day riding comfort, even on long journeys. |
|
|
|
|
| |
 |

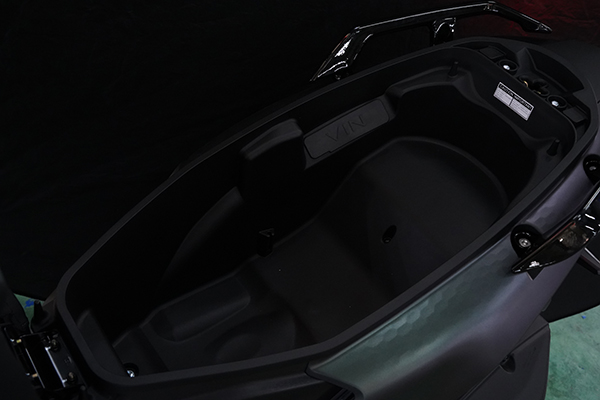

| Under-seat Storage (One Full-face Helmet) |
| |
| Spacious and practical for everyday use. |
|
|
|
|
|
| |
|
|
| |
Specification
|
| |
| ENGINE |
 |
| |
 |
|
TYPE |
| |
|
Single Cylinder, 4-stroke, 4-valve, Liquid-cooled |
| |
|
|
MAX TORQUE |
| |
|
13Nm @ 7,500rpm |
| |
|
|
CLUTCH TYPE |
| |
|
Auto-centrifugal |
| |
|
|
BORE X STROKE |
| |
|
57.4 × 57.8 |
| |
|
|
MAX POWER |
| |
|
10.6kW @ 8,000rpm |
|
|
|
|
STARTER |
| |
|
Electric Starter |
| |
|
|
DISPLACEMENT |
| |
|
149.6 cc |
| |
|
|
TRANSMISSION |
| |
|
C.V.T |
| |
|
|
COMPRESSION RATIO |
| |
|
11.2 : 1 |
| |
|
|
LUBRICATION SYSTEM |
| |
|
Forced Pressure & Splashing |
|
|
| |
| CHASIS |
|
| |
|
|
FRONT SUSPENSION |
| |
|
90mm Telescopic Forks |
| |
|
|
FRONT TYRE |
| |
|
120/70-R13, Tubeless |
| |
|
|
WHEELBASE (MM) |
| |
|
1,385 |
| |
|
|
REAR SUSPENSION |
| |
|
37mm Unit Swing |
| |
|
|
REAR TYRE |
| |
|
130/70-R13, Tubeless |
|
|
|
|
FUEL CAPACITY (LITER) |
| |
|
7.3 |
| |
|
|
FRONT BRAKE |
| |
|
260mm Disc, ABS |
| |
|
|
OVERALL WIDTH (mm) |
| |
|
760 |
| |
|
|
CURB WEIGHT |
| |
|
144kg |
| |
|
|
REAR BRAKE |
| |
|
233mm Disc, ABS |
|
|
|
|
OVERALL LENGTH (MM) |
| |
|
1995 |
| |
|
|
SEAT HEIGHT (mm) |
| |
|
800 |
| |
|
|
GROUND CLEARANCE (mm) |
| |
|
125 |
|
|
| |
|
